Description

Unique in the Netherlands we have a showroom where the Opticlimate and Dimlux ballast are operational, so you can pay us a visit on appointment to get known with all the solutions Opticlimate and Dimlux are able to provide. The Opticlimate is a new solution for controlling the climate in your greenhouse or grow room.

OptiClimate water-cooled air conditioner is a new solution for the indoor climate control. OptiClimate can be uses for circulation, cooling, heating, dehumidifying and filtering. There is more than five years of development and testing in OptiClimate. This has resulted in a fully developed and optimized product that allows to regulate the climate in to perfection, with the lowest possible power consumption.

OptiClimate cools the air using water as a cooling medium and heats through ceramic heating elements. Because water is a much better cooling fluid than air there is relatively little of needed. OptiClimate has a water inlet and outlet. The input is connected to the water supply. The drainage is connected to the sewer with a possible branch to a water or nutrient. The cold water is used to cool the air with the result that it is heated to 40-50 ° C. This warm water is discharged into the sewers or can be used for other purposes, such as heating in your room.

The included remote is also a controller that all processes are fully automated and run to follow. After the remote once to set the minimum temperature (night), maximum (day) and the times will OptiClimate depending on the night or daytime heating or cooling. The pre-set temperatures are not exceeded.

During daytime operation (cooling) OptiClimate dehumidify the air. Should it be desired OptiClimate can also dehumidify the night conditions so that the humidity is optimal.

There is a OptiClimate of 3,5KW, 6KW, or 10KW 15KW cooling capacity. More OptiClimates in a room can be installed depending on the need for cooling. The stated capacity is maximum, but can be used at all times for less cooling.

Through the use of oversized heat exchangers and the water as a cooling medium, a very high efficiency and hence low current consumption is achieved.

On a 22MM cupper pipe, in total 45 to 60KW of cooling power can be connected. On a 16MM copper pipe, it is possible to connect up to 25KW cooling capacity.

Because the Opticlimate is placed in a (semi) closed system, it is very easy to add CO2 without much waste, to the cultivation area, wherein the air is continuously recirculated. Since there will only be a limited export of air, no major CO2 equipment is needed and models up to 4KW are more then sufficient.

The Opticlimate PRO 3 Series is a unique solution to arrange perfection. Through the cooling and heating function, it is possible 365

days per year to achieve a stable climate in which you are never dependent on the outdoor climate.

It is possible, by means of a circuit board with advanced software to adjust various settings, so it is now possible for spaces slowly to warm up and cool down, even if the assimilation lighting is turned off.

The Opticlimate system works even better when combined with Dimlux lighting and a CO2 addition. By means of corresponding software it's possible to adjust the behavior of CO2 and various control equipment to work together with the Opticlimate, to provide the perfect indoor climate.

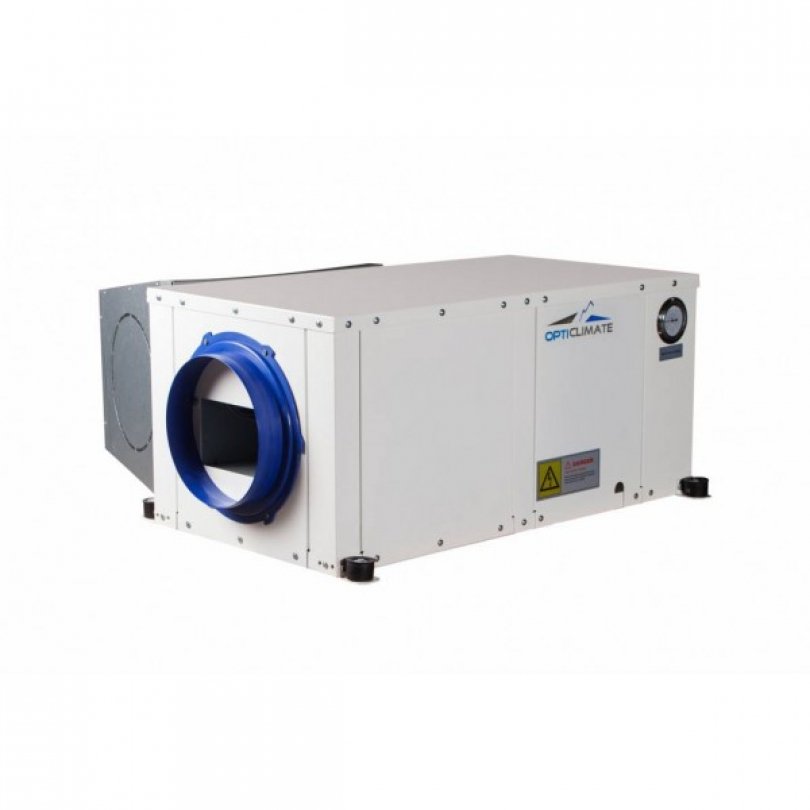

Product Name: Opticlimate 6000 Pro 3

Dimensions: 990 x 630 x 505mm

Weight: 80kg

Water consumption: 2 to 4 liters per minute (depending on cool water temperature)

Voltage: 230V

Connection: Phase 1 + 3x4 mm² D20-1F Machines or Phase 3 + 5x2.5mm² on a C-16 Machine

Heaters: 3x1500W
